Fixturlaser EXO Laser Shaft Alignment for sale

The True Live feature will deliver live measurement values showing the machine’s exact position. Did you interrupt the laser beam? Or move the machine’s position out of the detector range? Not a problem, our smart sensors will resume with an updated machine position and always deliver live values to you.

A Smart Alignment System Certified for Work in Hazardous Areas

Our core values, GuideU and Alignment Intelligence, have led to the development of several first industry functions, where True Live and VertiZontal Moves™ are unique on the market for laser-based shaft alignment tools. They bring ease of use to our end users, which above all facilitates easy precision shaft alignment, on-the-job time saving, improved reliability, and more importantly, money savings.

With the FIXTURLASER EXO, you get all this in an intrinsically safe shaft alignment package.


Easy-to-Use Shaft Alignment in Hazardous Areas

TRUE LIVE

Industry-leading EX certified smart sensors

  • Integrated Bluetooth for wireless communication between the display unit and smart sensors
  • 30 mm digital sensor detector line laser eliminates rough alignment, which results in a short setup time
  • Built-in dual inclinometers to detect backlash and obtain angular values during measurement in horizontal alignment
  • Thinnest smart sensors on the market
  • Premounted fixtures give a short setup time
  • Instant battery check – in both on and off mode
  • II 3G Ex ic op isIIC T4 Gc

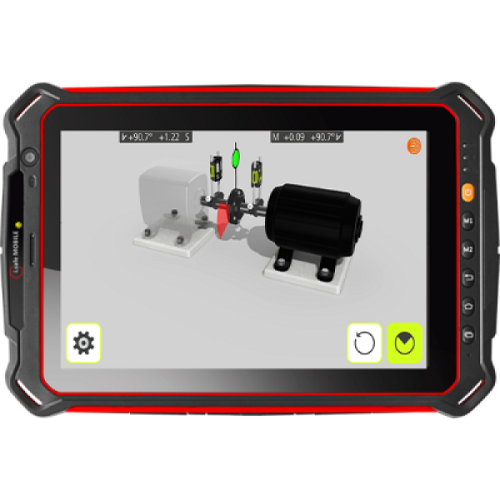

EX certified tablet with an app and icon-based user interface

  • Icon-based and color-coded user interface a language-free user interface
  • True live values during adjustment
  • Animated arrows indicating adjustment orientation and misalignment magnitude
  • Integrated Bluetooth for wireless communication between the display unit and smart sensors
  • ATEX/IECEx Zone 2 certified including ruggedized IP68 tablet device

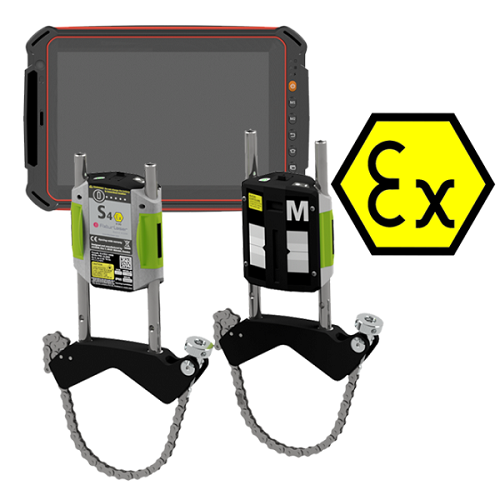

FIXTURLASER EXO – Package with Case

  • Tablet EX
  • 2 pcs of digital smart sensors EX
  • 2 pcs of V-brackets, complete with chains EX
  • Rod kit
  • 2 pcs of chains, 8 mm (length=970 mm)
  • Power cable, EU and US
  • USB cable with snap ferrite, A-mini, 2 m
  • Power supply 5 USB ports
  • 3 pcs of USB cables A-mini B, 0,5 m
  • Tape measure 5 m
  • 2 pcs of angled universal tools
  • Fixturlaser NXA manual – English version


Technical specification

Fixturlaser EXO – Package with Case*
Weight including all standard parts6,6 kg (14,6 lbs)
Storage temp-20 to 70°C (-4 to 158°F)
Long term storage tempRoom temp. 18 to 28°C (64 to 82°F)

Case
MaterialAnodixed aluminum/plywood
Weight (empty)4,0 kg (8,8 lbs)
Dimension370 mm x 270 mm x 205 mm (14,6 in x 10,6 in x 8,1 in)

Digital Laser Sensors
Housing MaterialAnodized Aluminum frame and high impact ABS plastic overmolded with TPE rubber
Operating Temp0 to 50°C   (32 to 122°F)
Storage Temp-20 to 70°C ( -4 to 158°F)
Long term storage tempRoom temp. 18 to 28°C (64 to 82°F)
Battery Charging Temp5 to 40°C   (41 to 104°F)
Relative humidity10 – 90%
WeightM4 Ex: 220 g (7,8 oz)
S4 Ex: 190 g (6,7 oz)
Dimensions92 mm x 77 mm x 33 mm
(3,6 in x 3,0 in x 1,3 in)
Environmental protectionIP 65 (Dust-tight and protected against water jets)
Laser650 nm class II diode laser
Laser line fan angle
Laser line width (1/e2)1.6 mm
Laser line divergence (full angle)0.25 mrad
Laser power< 1 mW
Measurement distanceUp to 5m
Detector2nd gen. digital sensor
Detector length30mm ( 1,2 in )
Detector angular subtense30mrad/m (3mm/100mm per meter)
Detector resolution1 µm
Measurement accuracy0,3% ± 7 µm
Signal processing:Digital signal processing with sidespot rejection, edge detection, ambient light elimination, and anti-vibration mode
Ambient light protectionOptical filtering and digital ambient light signal elimination
Inclinometer:Dual High-Performance MEMS inclinometers
Inclinometer resolution0,01°
Inclinometer accuracy±0,2°
Total measurement axis’s (M4 S4Ex units)14
Wireless communication:Class I Bluetooth transmitter
Communication range10 m (33 ft)
Peripherals – User accessible1 USB Mini port (IP 67);

Charging: 5V, 0,5A

Power supplyHigh-performance Li-Ion battery or external power.
Operating time:12 hours continuous use (measuring)
Battery Charging time (system off, room temperature)5 hours
LED indicatorsUnit state, laser transmission and 5 battery status indicators with instant battery check

Shaft brackets
FixtureV-fixture with non-twisting chain, width 20 mm (0,79 in)
MaterialAnodized aluminum
Shaft diameterØ 25-175 mm (1”-6.9”)
Ø 25-450 mm (1”-18”) (with extension chains)
Rods4 pcs 100 mm (3,9 in) and
4 pcs 150 mm (5,9 in)
Extendable to 250 mm (9,8 in)

Enquire now and get affordable price at GARANG STORE.

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

New Fixturlaser EXO Laser Shaft Alignment

  • Product Code: EXO
  • Availability: In Stock
  • $6,210.00
